Concrete Panel Retaining Walls

Precast concrete panels installed between structural posts or columns. Suitable for substantial earth retention on civil, industrial and commercial developments.

CONCRETE PANEL & STEEL POST WALLS

Cost-effective solutions. Fast installation. Versatile construction.

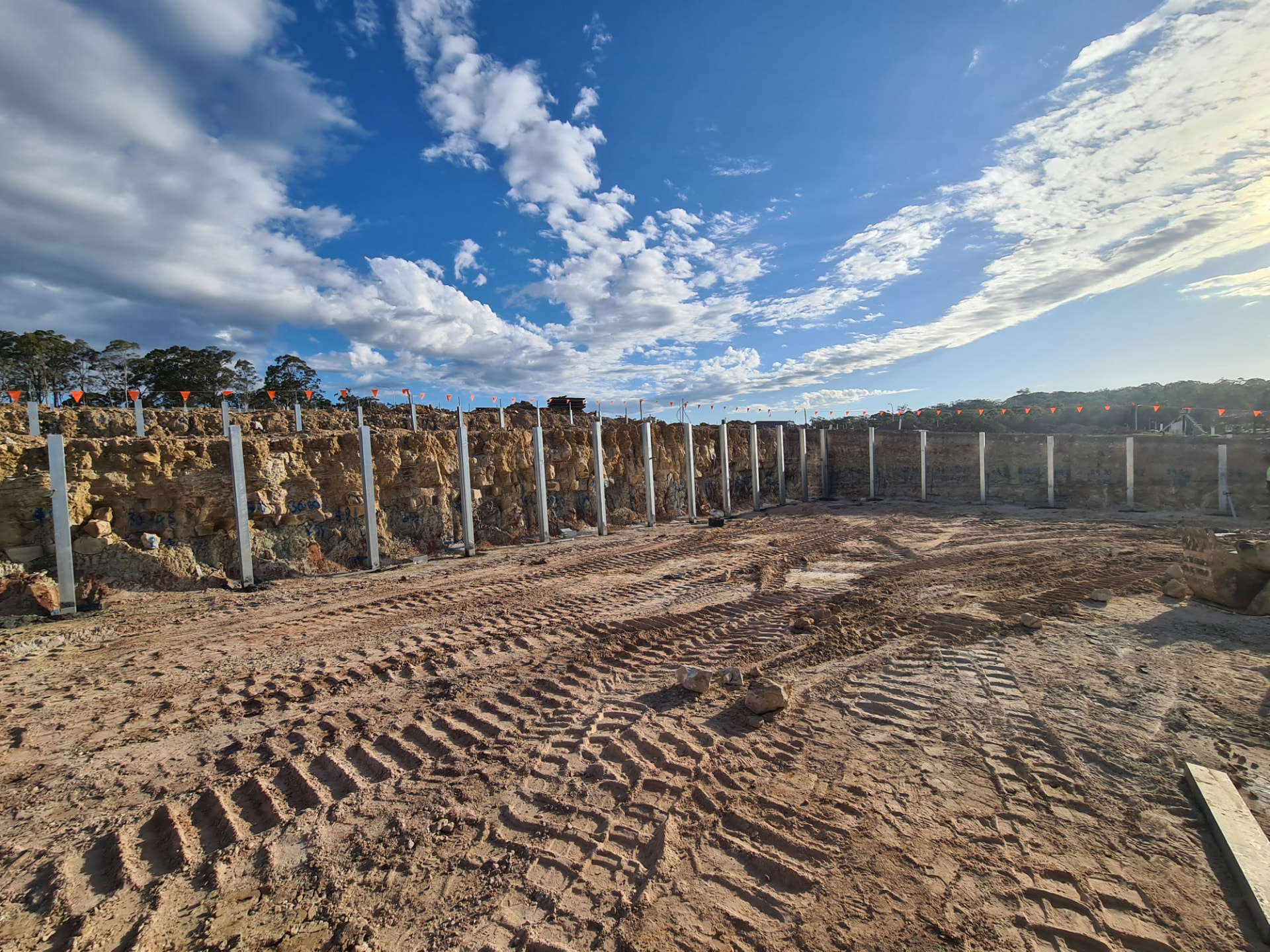

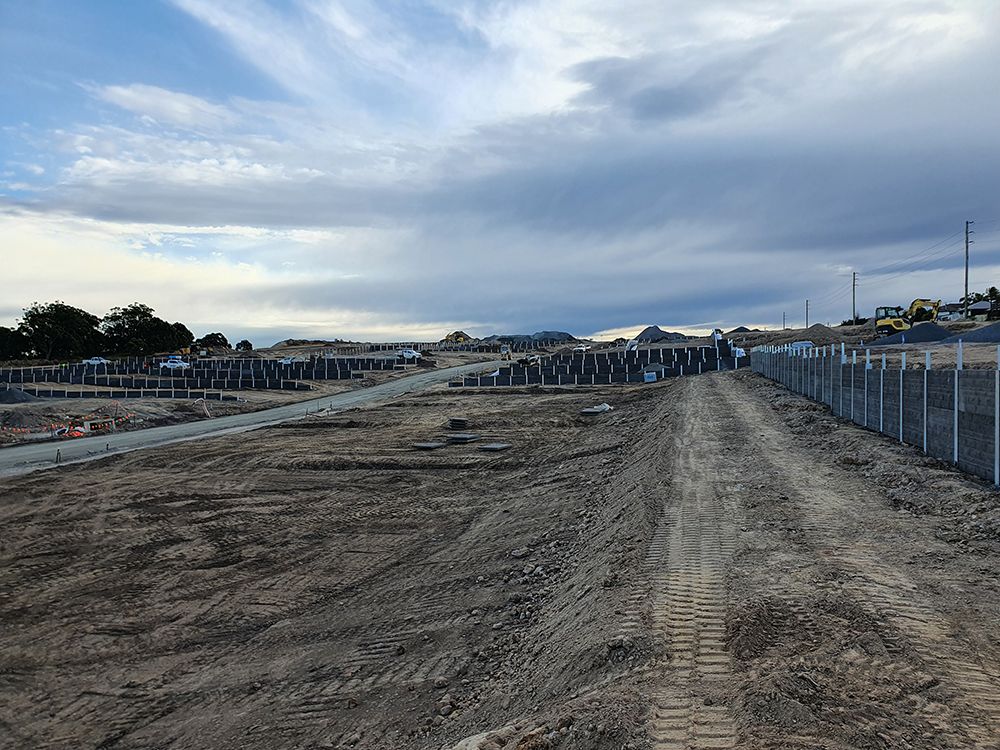

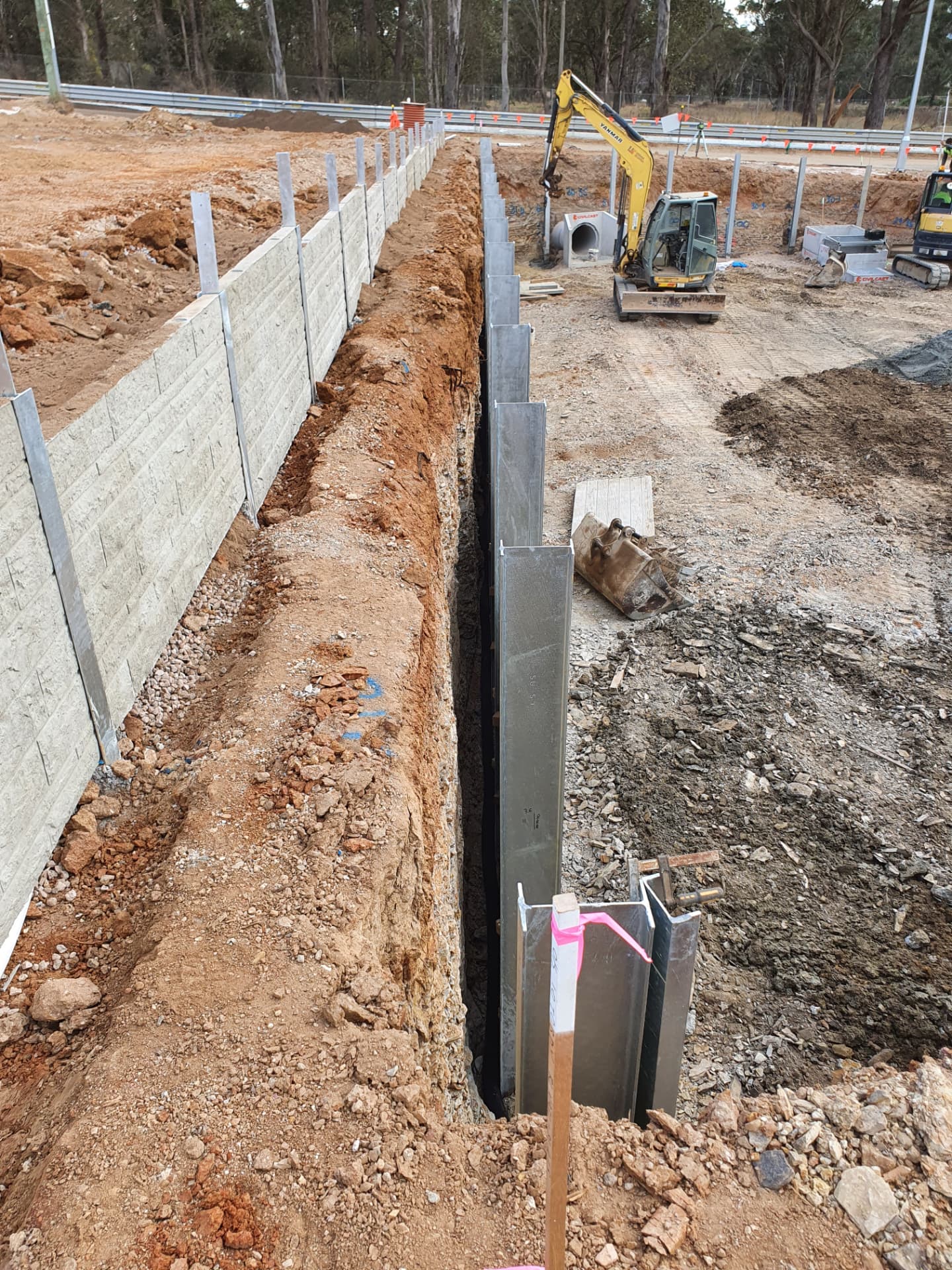

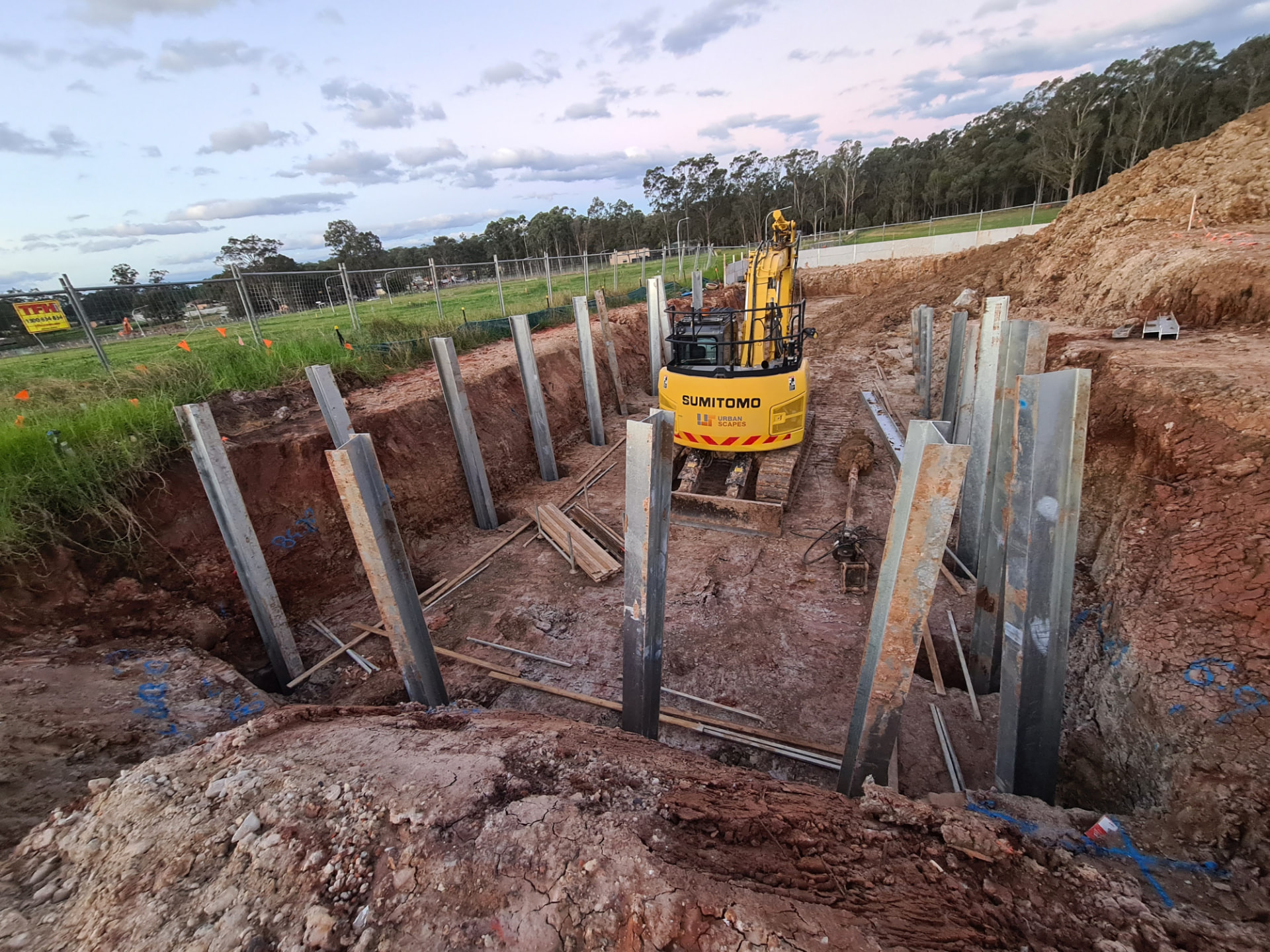

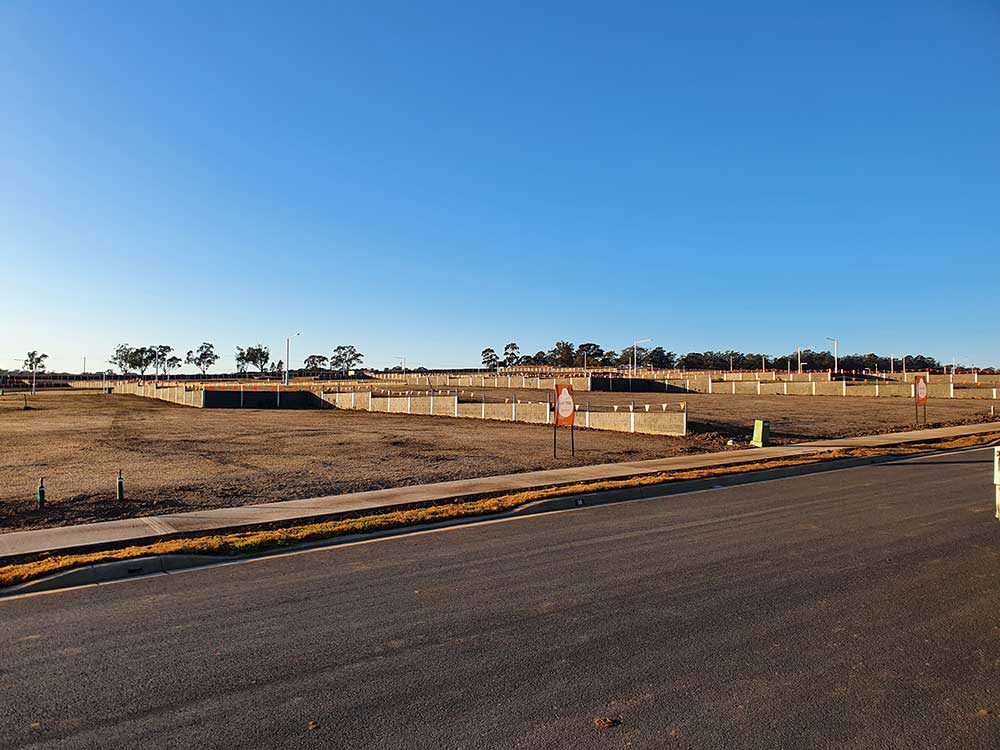

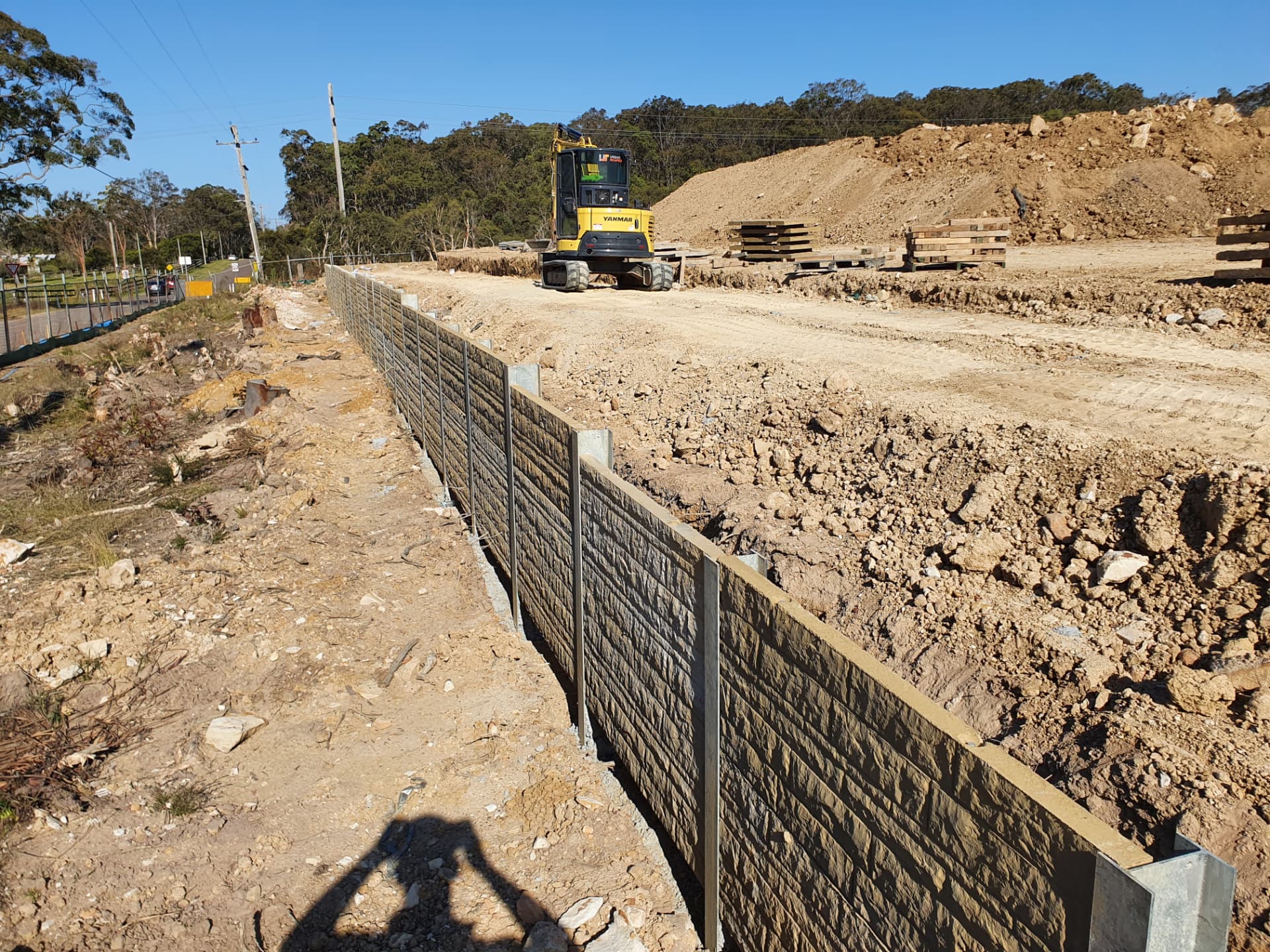

Steel post and precast concrete panel walls are a cost-effective retaining solution for civil, commercial and industrial developments. Their slimline vertical design minimises the footprint required, making them particularly economical for retaining heights below 3 metres. Panels are available in a range of textures, colours and finishes to suit different project requirements.

Discuss This Wall System

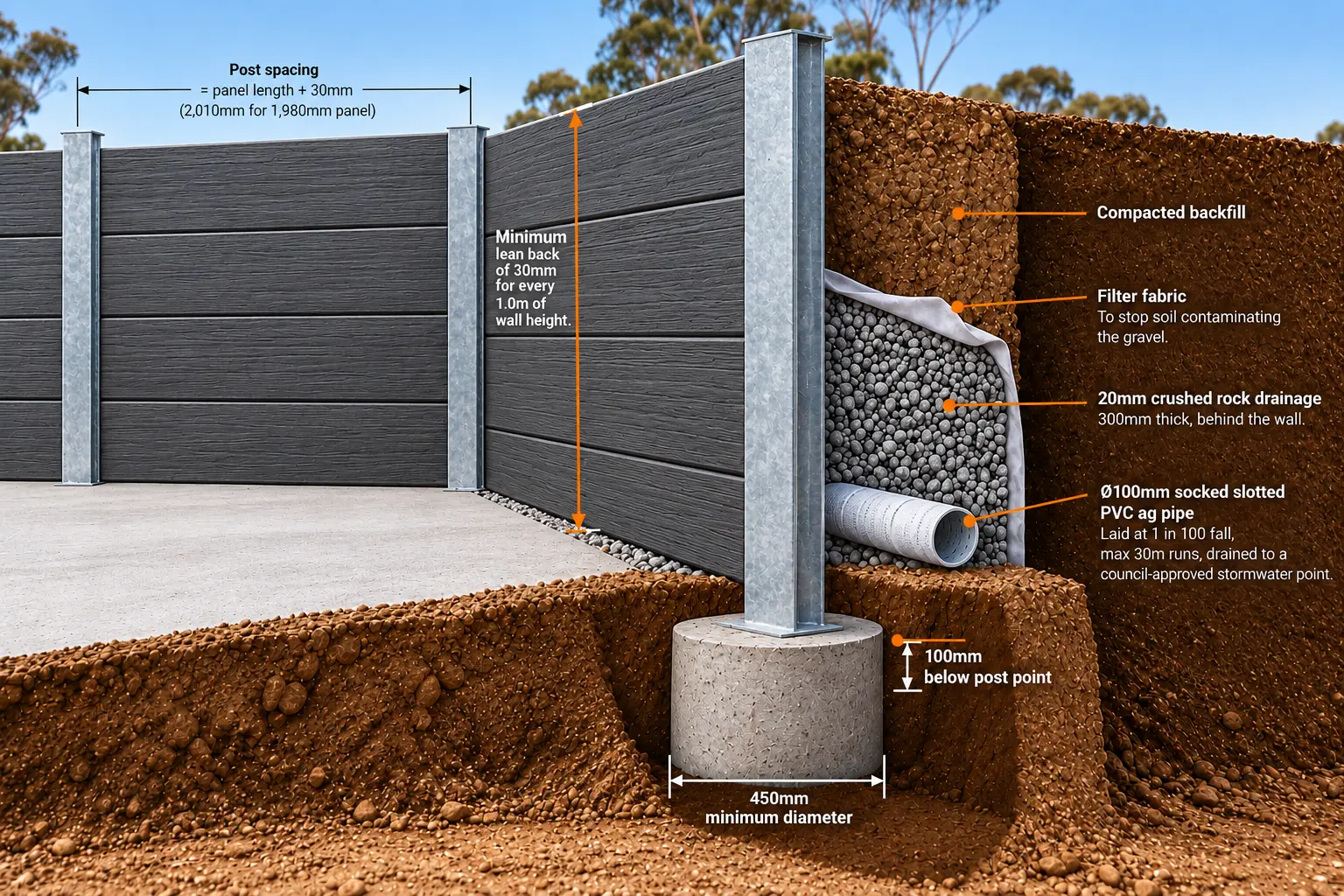

Concrete Panel Retaining Walls cutaway diagram showing steel posts, precast panels and drainage

PRECAST CONCRETE RETAINING WALL PANELS

Textures, finishes, colours & sizes.

Urbanscapes manufactures precast concrete retaining wall panels in a range of textures, finishes, colours and sizes to suit different project requirements. From contemporary woodgrain and splitface textures to block and stackstone finishes, our panel range offers practical retaining solutions with a choice of architectural appearances.

Explore our finishes and colours below, or contact our team to discuss the right panel configuration for your project.

Woodgrain Texture

Bring a natural timber-inspired appearance to your retaining wall with our Woodgrain panels. The textured finish combines the look of timber with the durability of precast concrete, making it suitable for a range of civil, commercial and residential applications.

Available colours

Standard Grey — unpigmented concrete
Charcoal

Standard panel dimensions

Length: 1,980 mm
Heights: 450 mm, 600 mm, 750 mm, 900 mm, 1,050 mm and 1,200 mm
Thickness: 80 mm

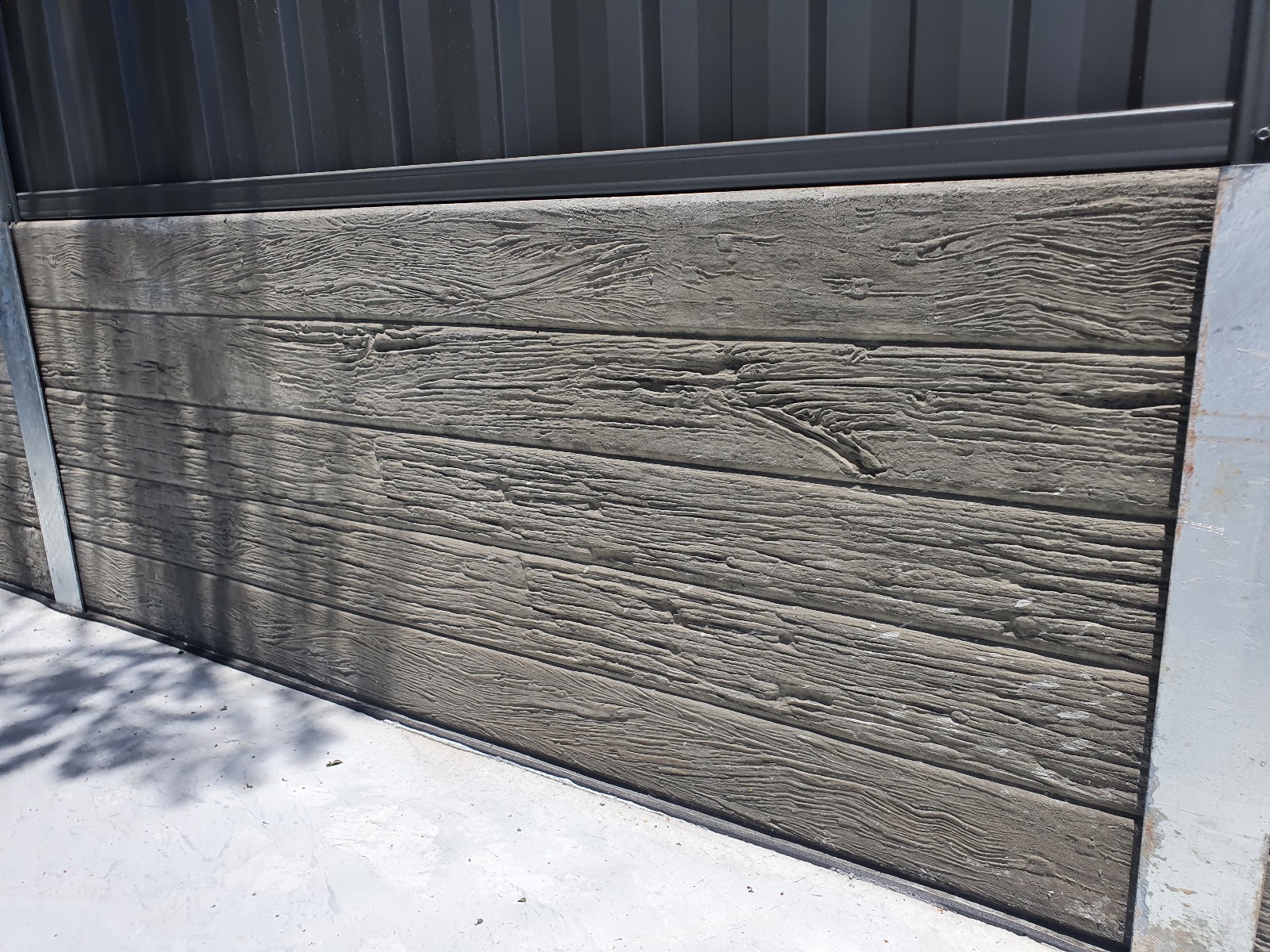

Woodgrain Texture panel in Standard Grey — Woodgrain Texture · Standard Grey

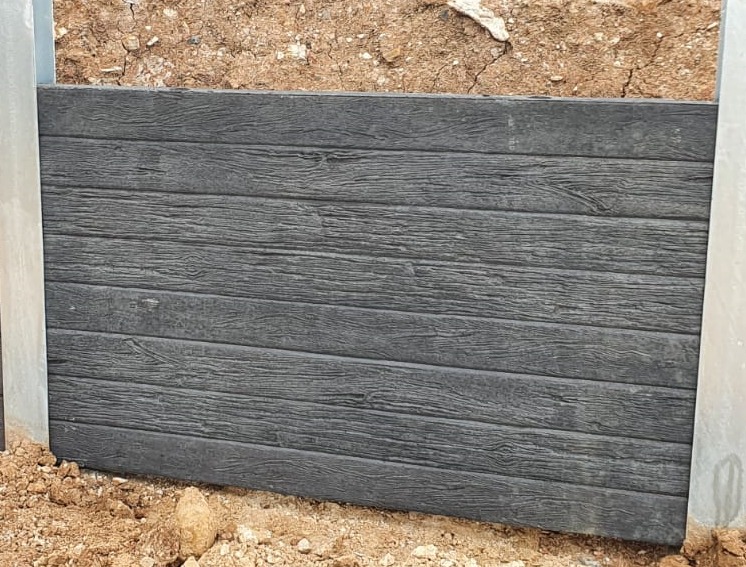

Woodgrain Texture panel in Charcoal — Woodgrain Texture · Charcoal

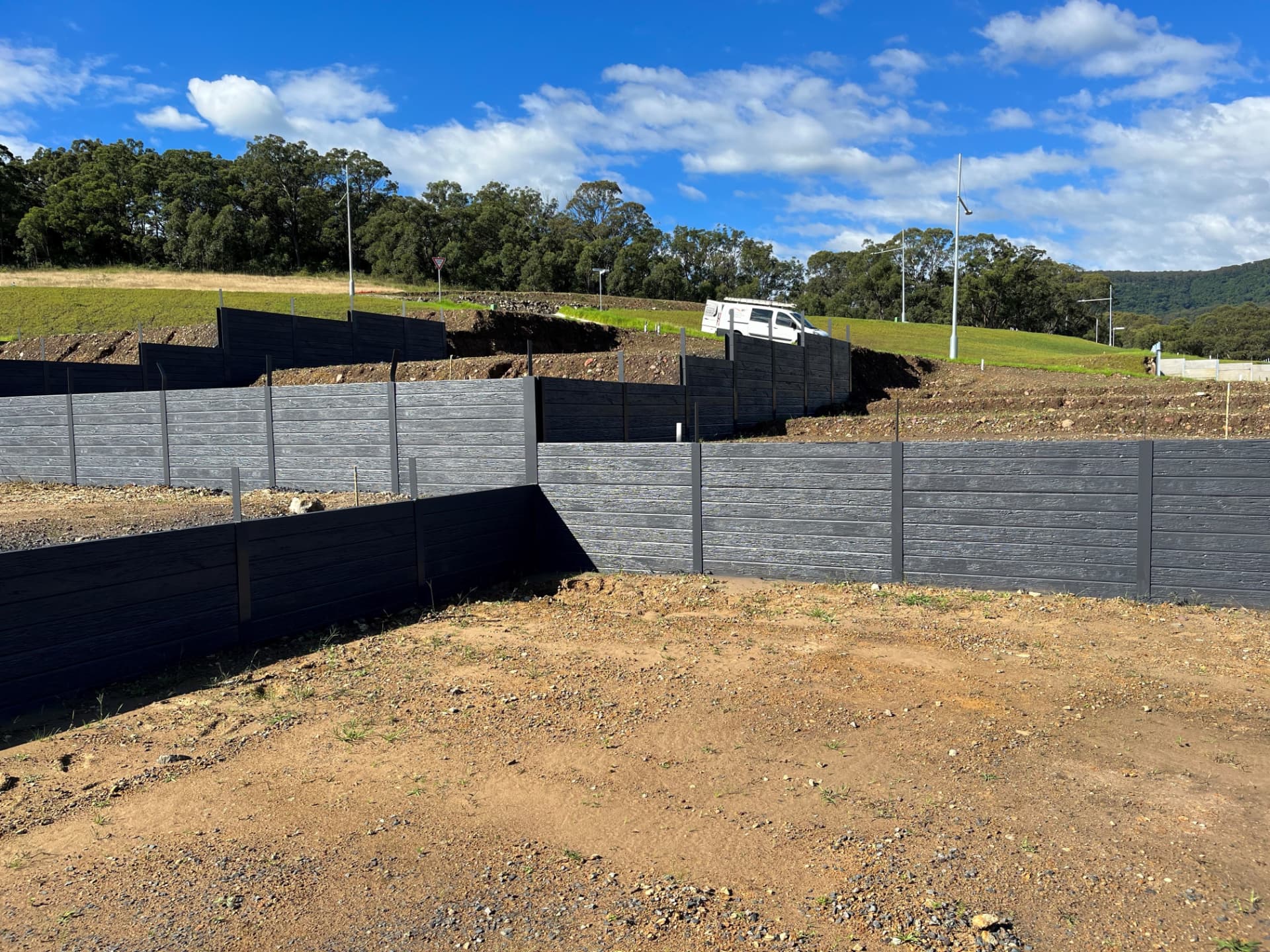

Woodgrain Texture · Charcoal panel — Woodgrain Texture · Charcoal

Splitface Texture

Our Splitface panels feature a distinctive, textured surface that creates depth and visual interest. Available in neutral and earthy tones, this finish suits projects requiring a strong architectural appearance.

Available colours

Standard Grey — unpigmented concrete
Charcoal
Sandstone

Standard panel dimensions

Length: 1,980 mm
Heights: 450 mm, 600 mm, 750 mm, 900 mm, 1,050 mm and 1,200 mm
Thickness: 80 mm

Splitface Texture panel in Standard Grey — Splitface Texture · Standard Grey

Splitface Texture panel in Charcoal — Splitface Texture · Charcoal

Splitface Texture panel in Sandstone — Splitface Texture · Sandstone

Block Texture

Achieve the appearance of a block-faced retaining wall with our Block finish panels. The defined block pattern provides a clean, structured look and can complement surrounding masonry or dry-stack blockwork.

Available colours

Charcoal
Sandstone

Standard panel dimensions

Length: 1,980 mm
Heights: 400 mm, 600 mm, 800 mm, 1,000 mm and 1,200 mm
Thickness: 80 mm

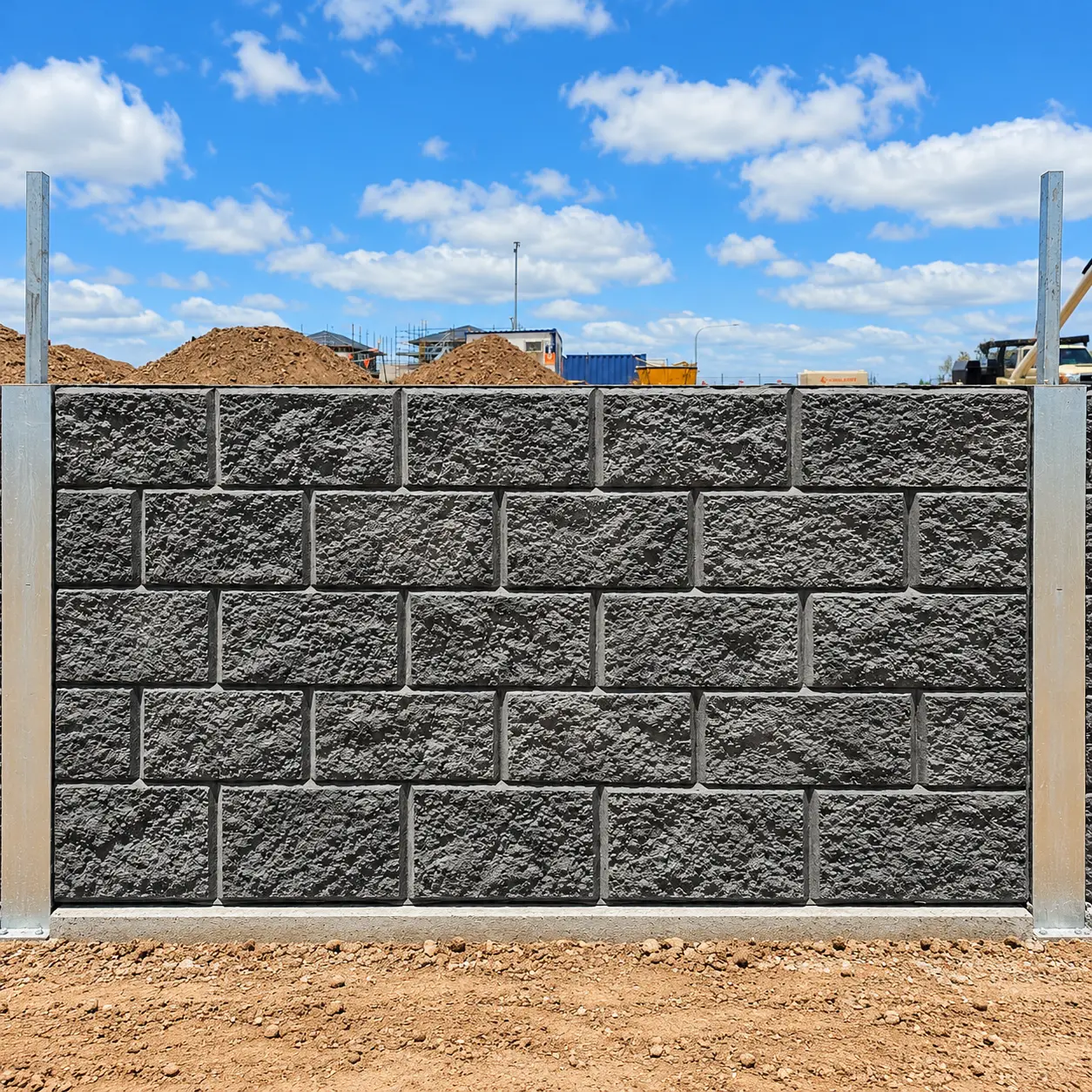

Block Texture panel in Charcoal — Block Texture · Charcoal

Block Texture panel in Sandstone — Block Texture · Sandstone

Stackstone Texture

Our Stackstone panels recreate the natural appearance of stacked stone, adding texture and character to retaining walls. This finish offers a traditional stone-inspired look using precast concrete panels.

Available colours

Standard Grey — unpigmented concrete
Charcoal

Standard panel dimensions

Length: 1,980 mm
Heights: 450 mm, 600 mm, 750 mm, 900 mm, 1,050 mm and 1,200 mm
Thickness: 80 mm

Stackstone Texture panel in Standard Grey — Stackstone Texture · Standard Grey

Stackstone Texture panel in Charcoal — Stackstone Texture · Charcoal

Sandstone Log Texture

Our Sandstone Log panels replicate the appearance of traditional large sandstone log retaining walls using precast concrete. They offer an alternative to handling individual one-tonne sandstone logs, with potential advantages for construction efficiency and space utilisation on suitable projects.

Available colours

Sandstone
Charcoal

Standard panel dimensions

Contact our team to discuss available dimensions and suitability for your project.

Sandstone Log Texture panel in Sandstone — Sandstone Log Texture · Sandstone

Sandstone Log Texture panel in Charcoal — Sandstone Log Texture · Charcoal

CONCRETE PANEL FINISHES

Painted & lacquered options.

We offer a range of finishes to customise your post and concrete panel retaining wall to suit your project and design preferences.

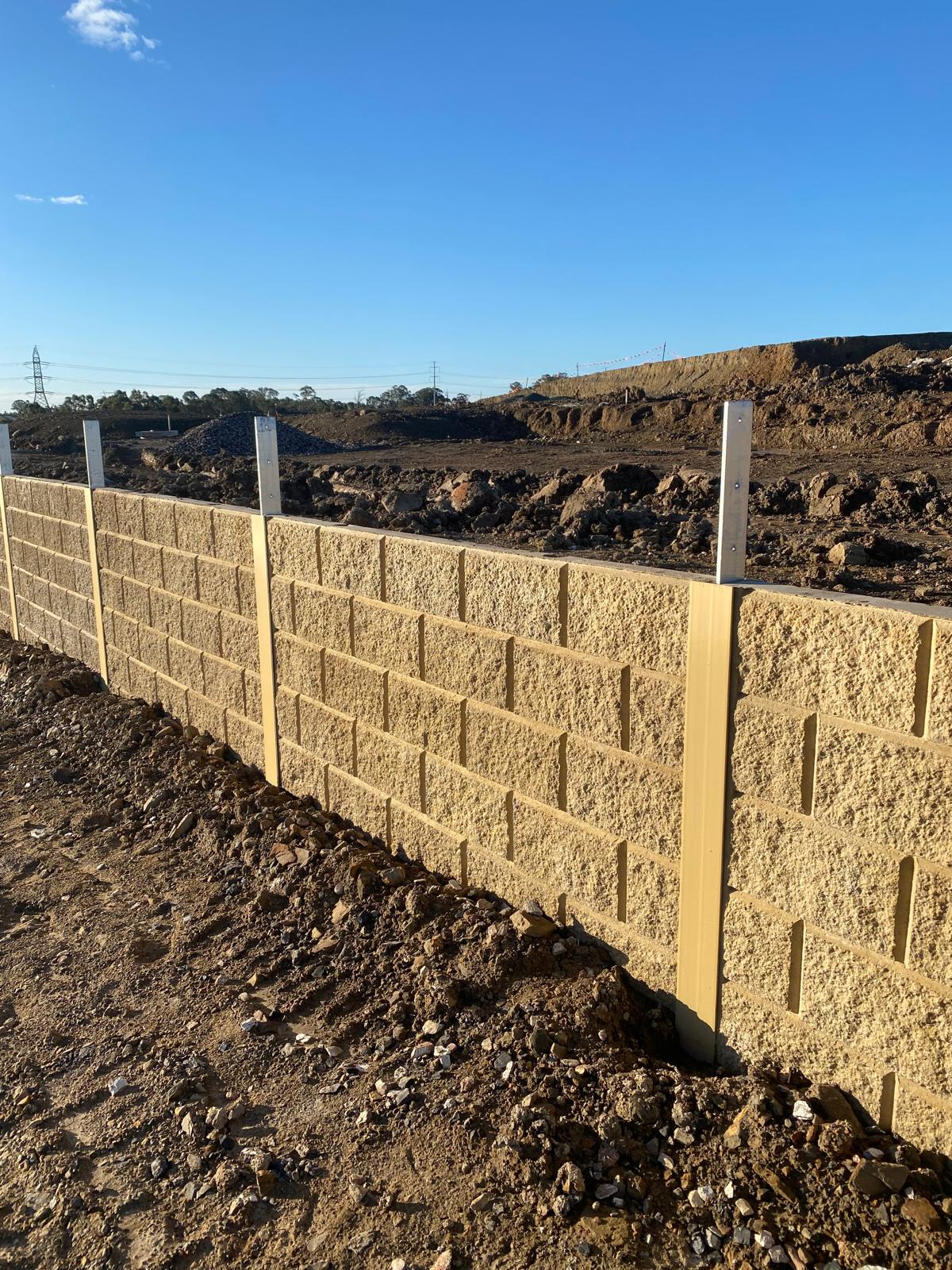

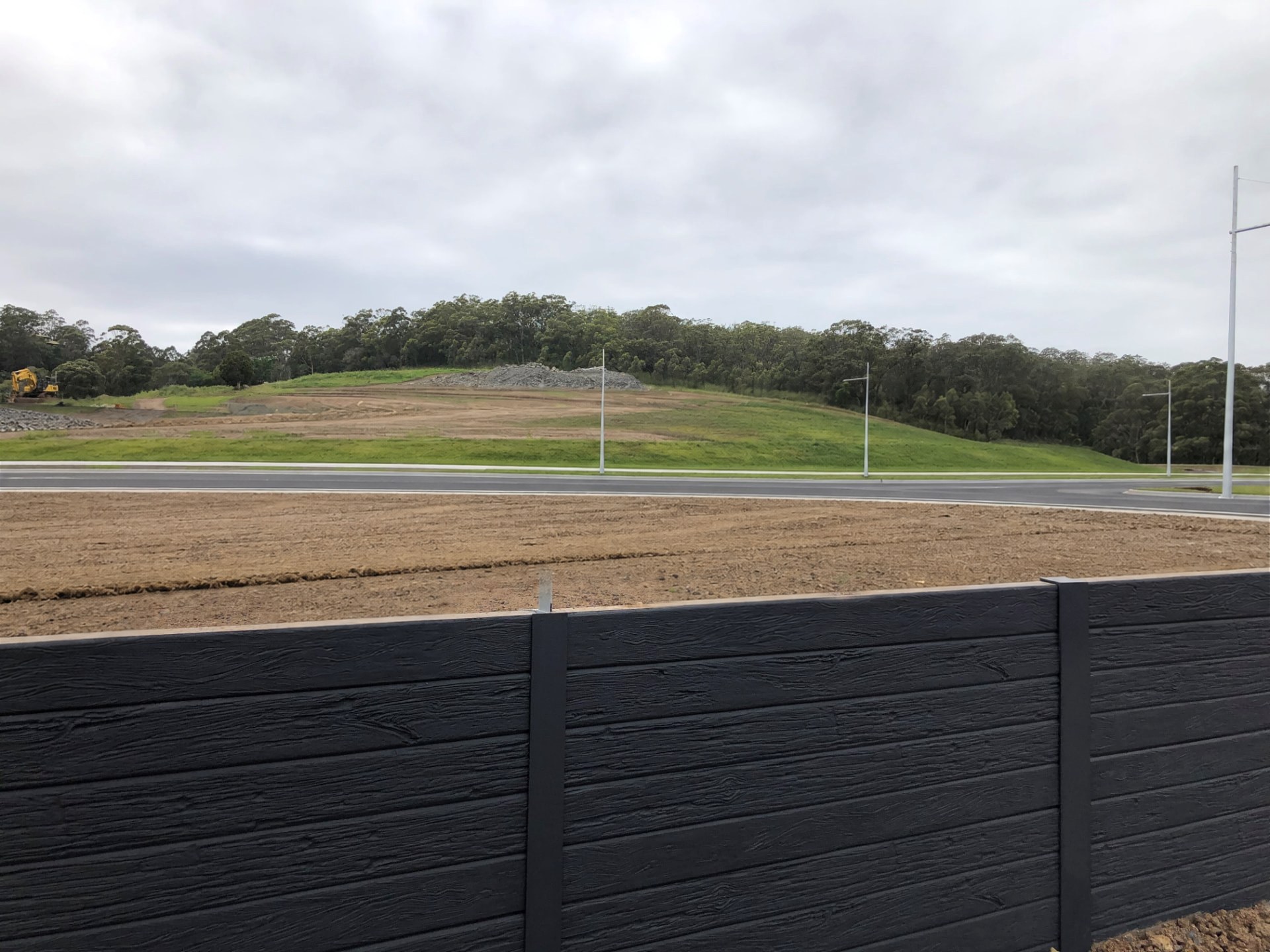

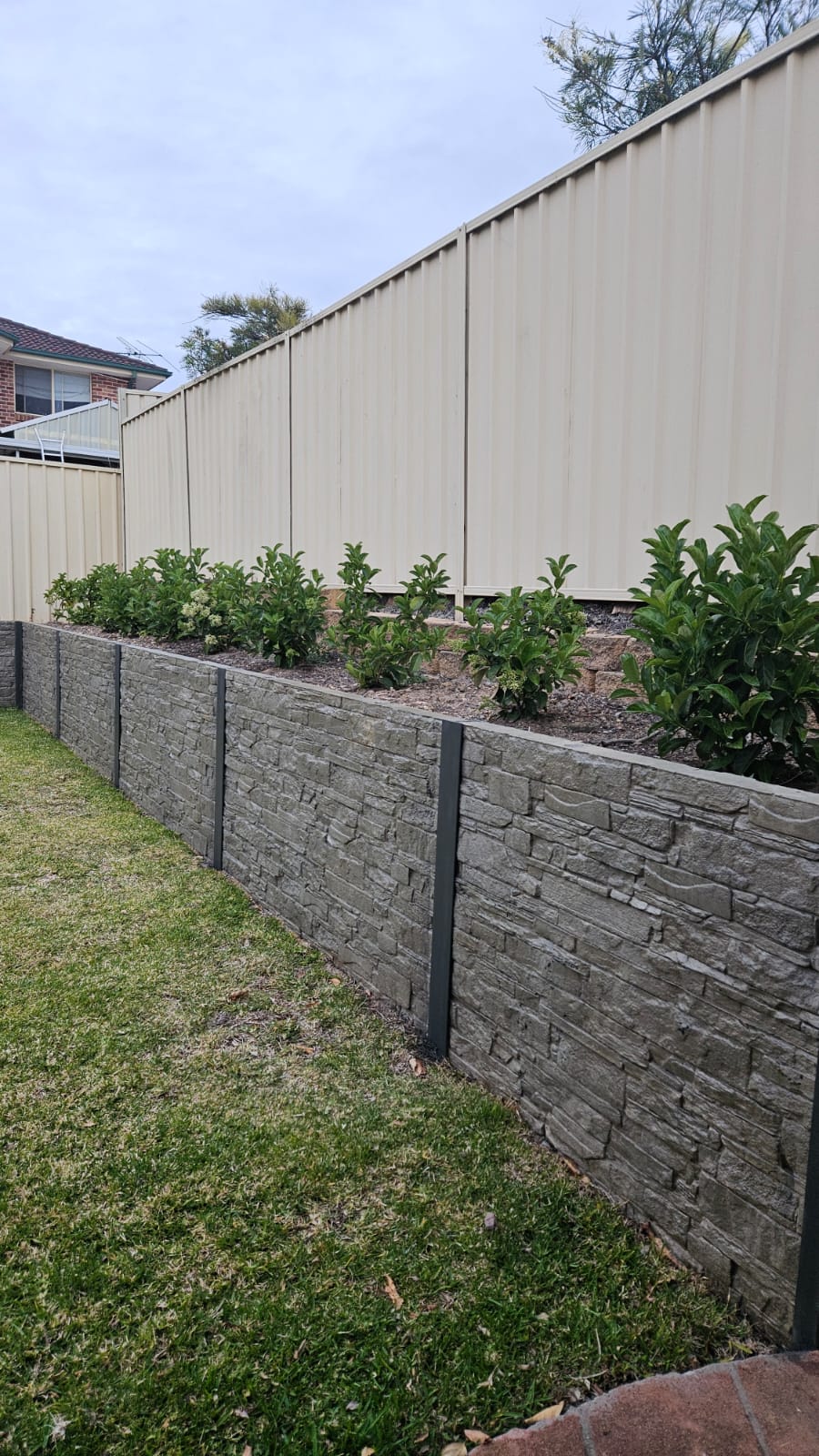

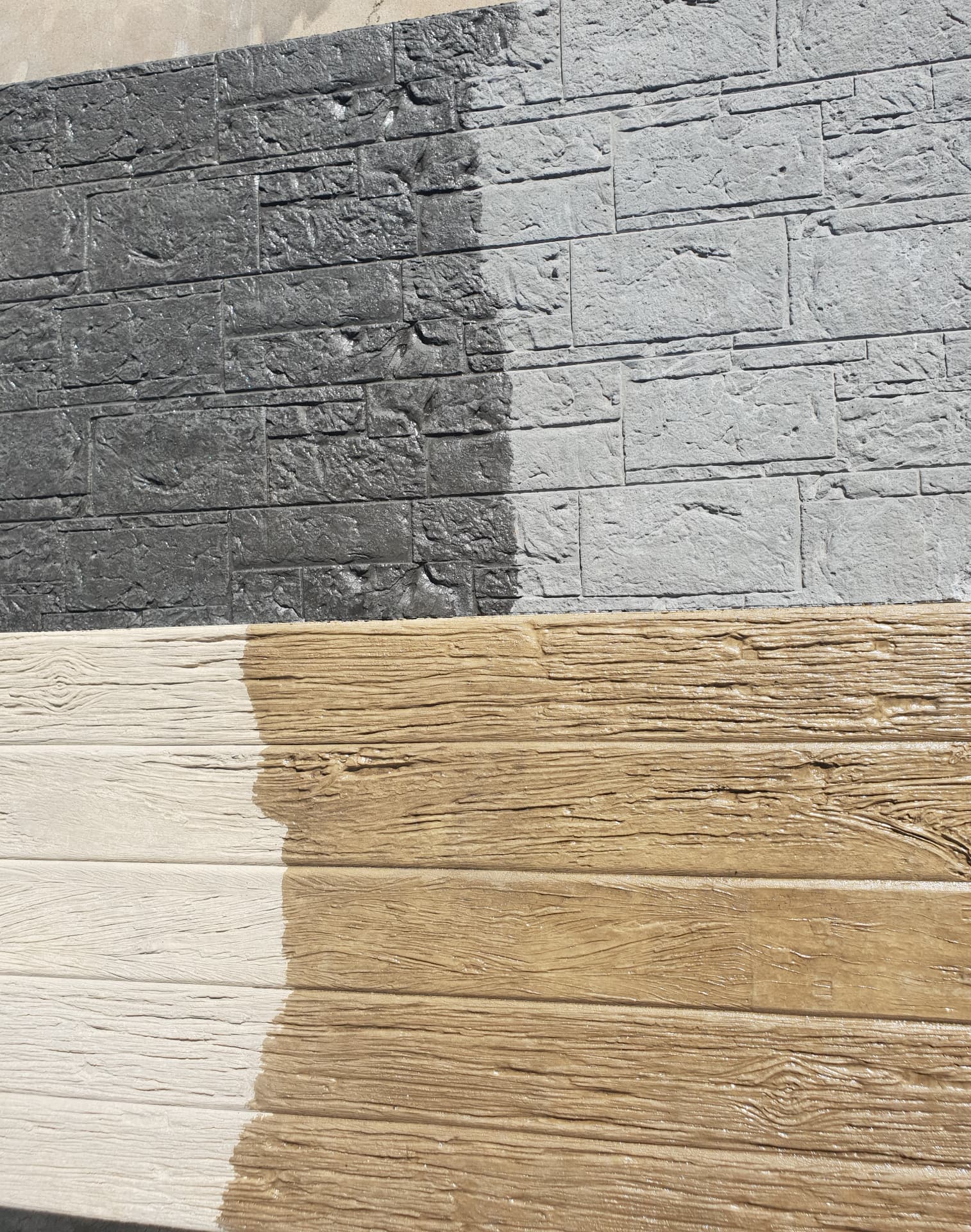

Our concrete panels can be painted in a colour of your choice or finished with a lacquer to achieve your desired appearance. Steel posts can also be painted to complement the panels and create a cohesive look across the entire wall.

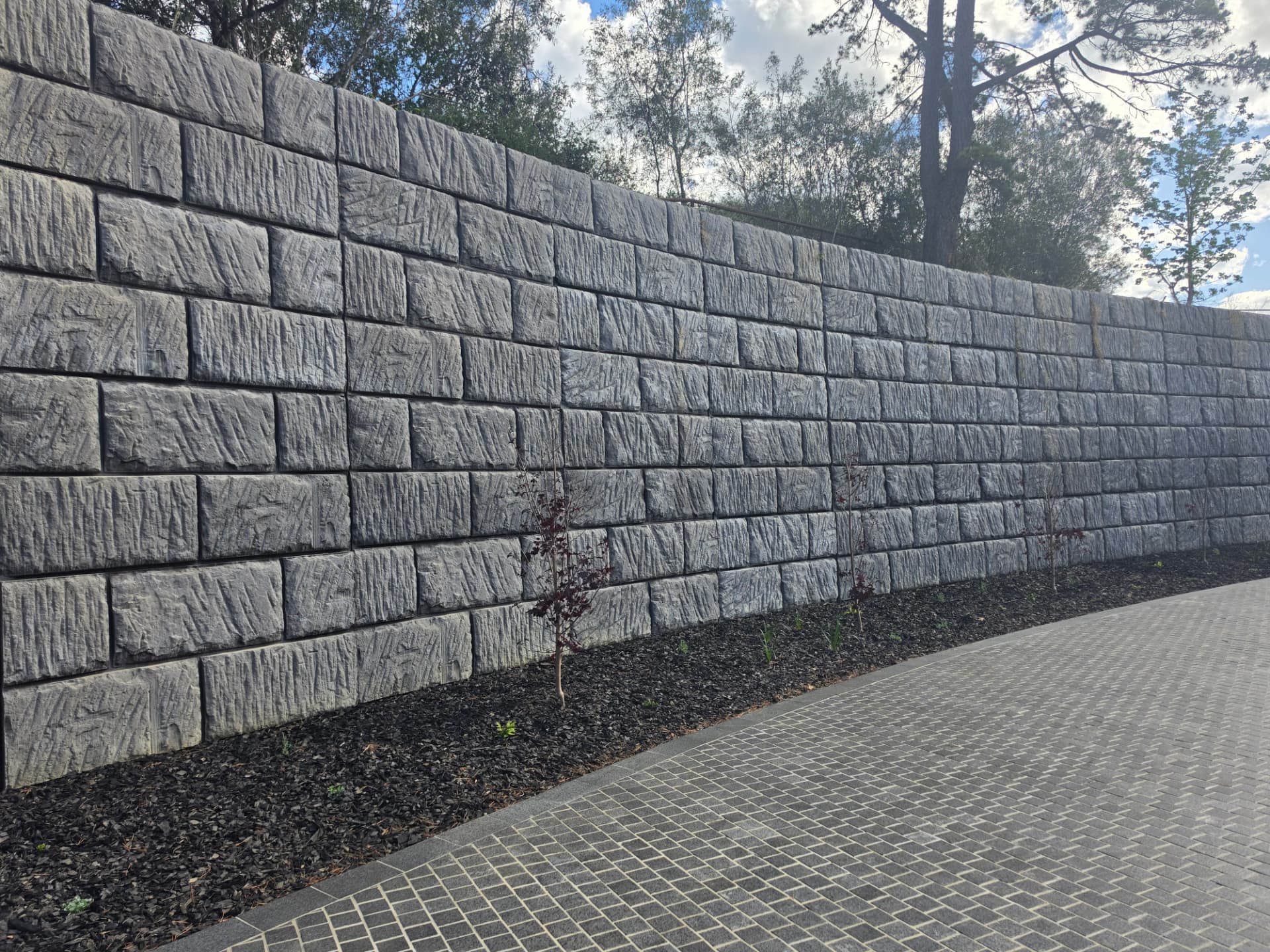

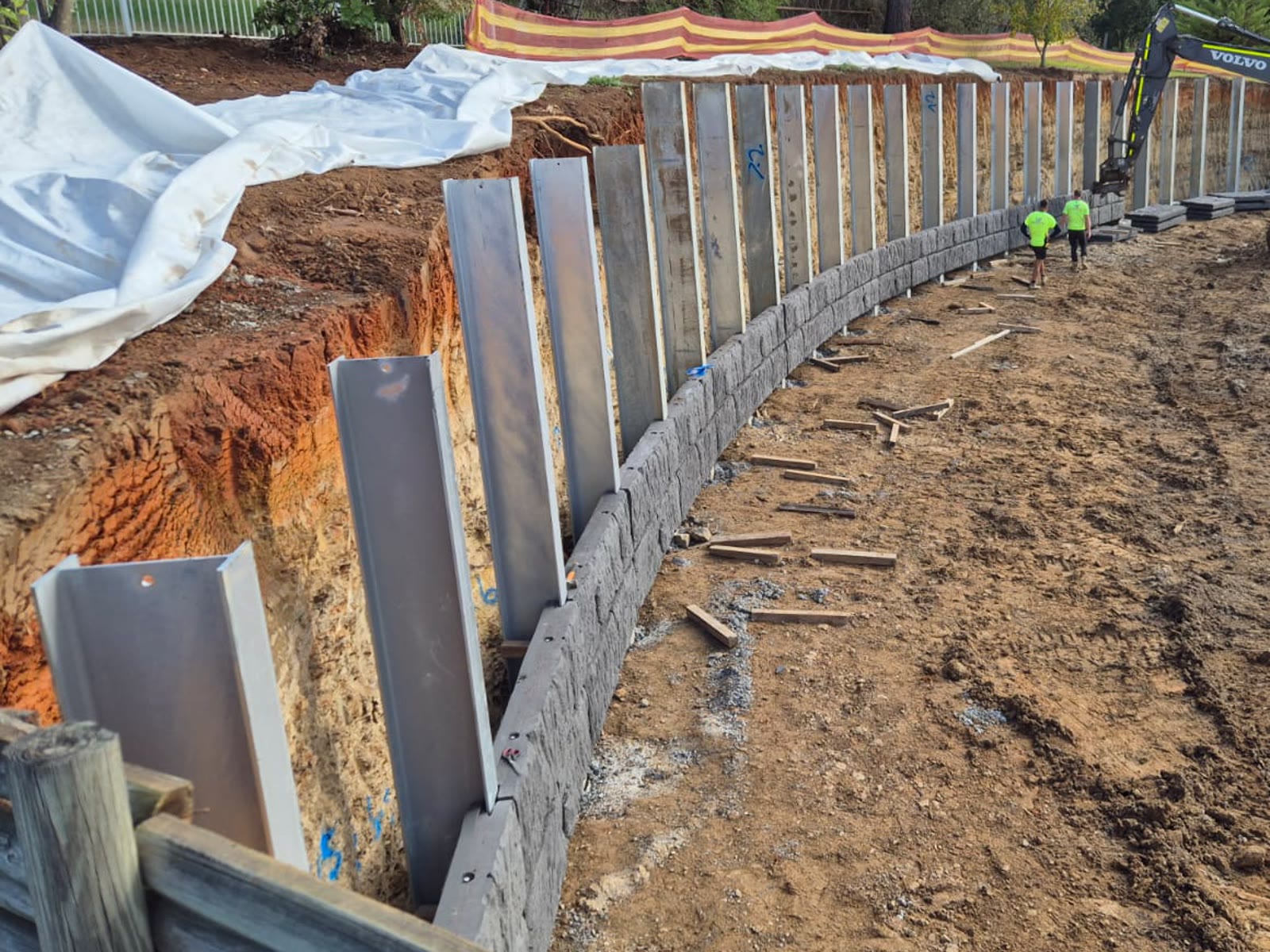

CONCEALED POSTS WALLS

Sandstone log panels with concealed posts.

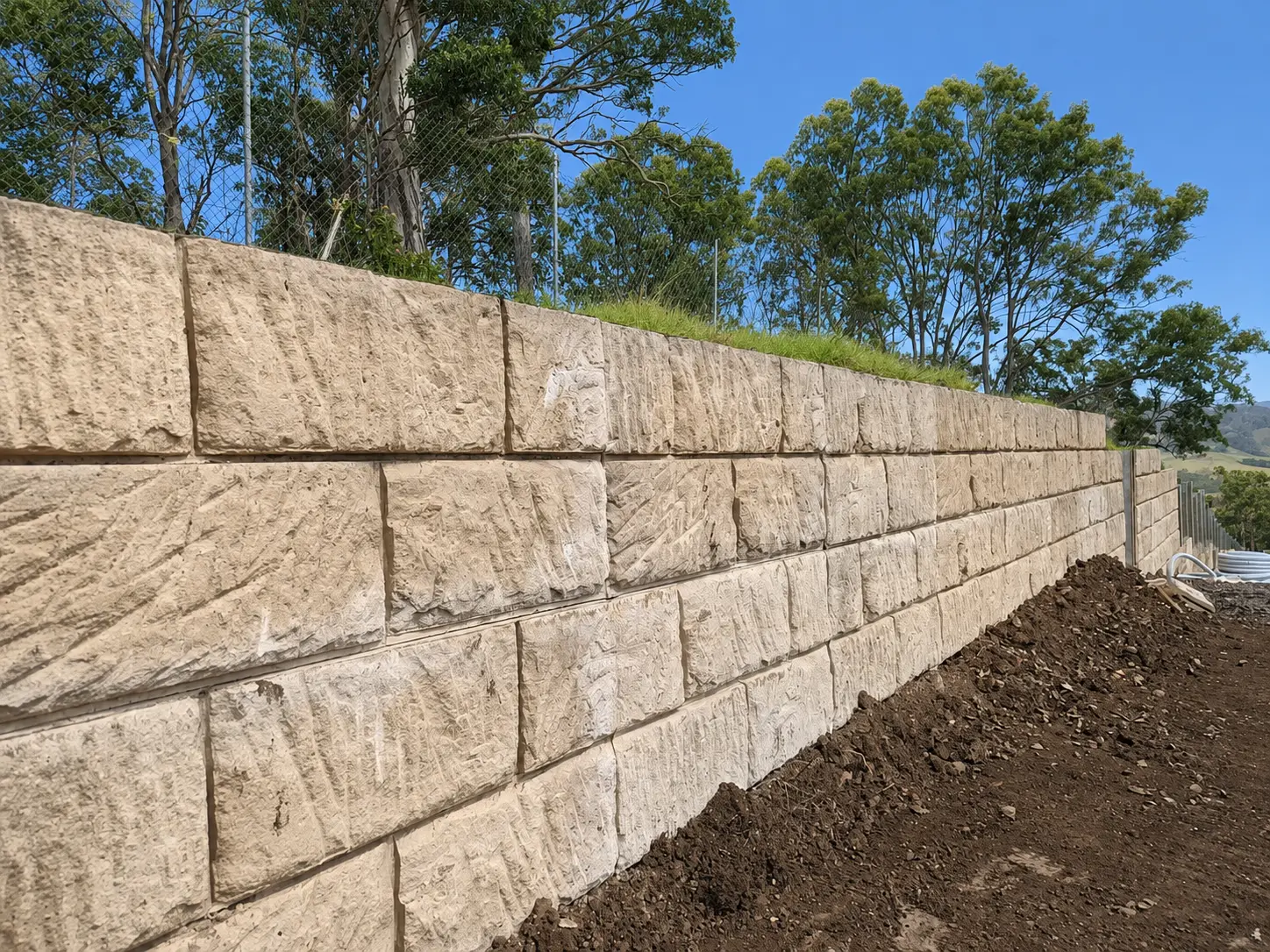

Our sandstone log retaining walls feature a concealed post system, creating a seamless, natural stone appearance without visible steel posts between the panels. Unlike conventional post and concrete panel walls, the steel posts are hidden from view, allowing the sandstone logs to create a continuous, solid-looking retaining wall.

NEED HELP SELECTING A PANEL?

Talk to our team.

Our team can help you explore the available finishes, colours and panel configurations for your project. Contact Urbanscapes to discuss your retaining wall requirements, request product information or obtain a project-specific quote.
